4 Channel DVR HD-CVI, H.264, BNC/VGA/HDMI, Audio 4ch in/4ch out, DVR

COMING SOON

- 4ch HD-CVI DVR.
- HD-CVI standard HD BNC interface.
- Low latency system.
- Hard drive not included.
- Image coding-control.
- Image dynamic detection.

Products recommendaded to work with this item:

dome camera 1/3 cmos pixelplus 1.0mp/720p 3.6mm 30 leds, 82 fts ir

ir dome camera 1/2.9 cmos 1.0mp/720p 2.812mm lens 8pcs led 49ft ir

seagate barracuda 1 tb hdd sata 6 gb/s ncq 64mb cache

Price for all 4: $274.96

4 Channel DVR HD-CVI, H.264, BNC/VGA/HDMI, Audio 4ch in/4ch out

Dome camera 1/3 CMOS Pixelplus 1.0Mp/720p 3.6mm 30 LEDs, 82 fts IR

IR Dome camera 1/2.9 CMOS 1.0Mp/720p 2.8-12mm lens 8pcs LED 49ft IR

Seagate Barracuda 1 TB HDD SATA 6 Gb/s NCQ 64MB Cache

Product Features Specifications Download

This DVR (Digital Video Recorder) features an English menu and motion detection recording. Monitor your cameras on the Internet from anywhere through your PC, mobile cellphone (Android, iPhone) or tablet (Android, iPad) in real time. It includes a mouse and remote control. Ideal for HD-CVI cameras.

This video surveillance equipment can record images registered by their cameras and is very easy to use.

Multiple recording modes: Manual, automatic, dynamic monitoring and alarm trigger video mode.
Multiple control methods: USB mouse, remote control, front panel control.
Compatible with: WIN98 / WIN2000 / WIN XP / WIN VISTA / WIN SEVEN.

Main features:
- 4ch 720P real time HD-CVI DVR, CVI for HD cameras.
- Startup and shutdown automatically.
- Low latency system in favor of real-time HD video image processing.
- HD video signal recording, storage, playback and transport support.
- HD-CVI standard HD BNC interface.
- Image coding-control: image edit adjustable, both changeable and fix stream optional.
- Image dynamic detection: multiple detection areas in each channel.
- Operate mode: mouse, remote controller, front panel control.

Hard drive not included.
This Recorder does not include Hard Drive since it depends on the installer or the consumer on what requirement of Hard Drive capacity they are in need. We sell various types of Hard Drives. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

H.264 video compression reduces storage requirements

H.264 compression greatly reduces the size of your digital video files without compromising image quality. H.264 is a stable, proven compression technology which offers unbeatable recording picture quality and saves you valuable hard drive storage space.

HDMI delivers enhanced image clarity

HDMI supports standard, enhanced or HD video. This recorder features an HDMI output which delivers enhanced image clarity with crisp images and enables you to view your security camera video in HD on your HDTV screen. HD images can be reproduced with the HDMI support for HD display.

Keep everything under watch with multiple recording modes

Multiple selectable recording options are available such as motion detection, continuous and scheduled recording. This enables you to choose the appropriate recording type for your security needs and to maximize the number of hours of video you can record and store on your hard drive.

Accurate alarm recording allows you to cover the whole event

This feature works with the motion detection capability of the DVR or alarm contacts attached to a door or window. When an incident is detected, the DVR records a pre-set amount of time before and after the event to the hard drive. This enables you to see what happened before and after motion was detected and view additional information about the circumstances leading up to and after it.

Backup for saving critical video evidence

The recorder allows still images and recorded video to be offloaded via one or more of these options for quick and easy backup of your critical video evidence: DVD, USB drive or network.

Monitoring 3G

Monitors 3G work like a standard baby monitor system with an iOS device serving as a monitor in the baby's room or anywhere else the baby may be and a second device as the parent's listening station. Since having a baby requires constant monitoring, with a baby monitor 3g you will be able to watch over and provide them with safety and happiness

Save money with no contracts and no monthly fees

Once your system is installed, you have the peace of mind that your property is protected with the added advantage of no binding contracts and no recurring monthly subscription fees.

Warranty: One (1) Year

4 Channel DVR HD-CVI, H.264, BNC/VGA/HDMI, Audio 4ch in/4ch out
General
Brand	LineMak
Model	LS-NTCR6704G3
System
Operating system	Embedded Linux
Video
Resolution	720P (1280Ã720)
Compression format	H.264
Display quality	720P Total:120FPS
Frame rate	NTSC: 30fps
Streams	Dual stream can be set up in each channel.
Image dynamic detection	Multiple detection areas in each channel
Image coding-control	Image edit adjustable, both changeable and fix stream.
Recording & Playback
Recording mode	Support manual, automatic, dynamic monitoring, alarm trigger video mode
Storage & Backup
Recording storage	Local hard disk and network
Backup mode	U disk, USB portable disk, USB burn, Network storage and backup

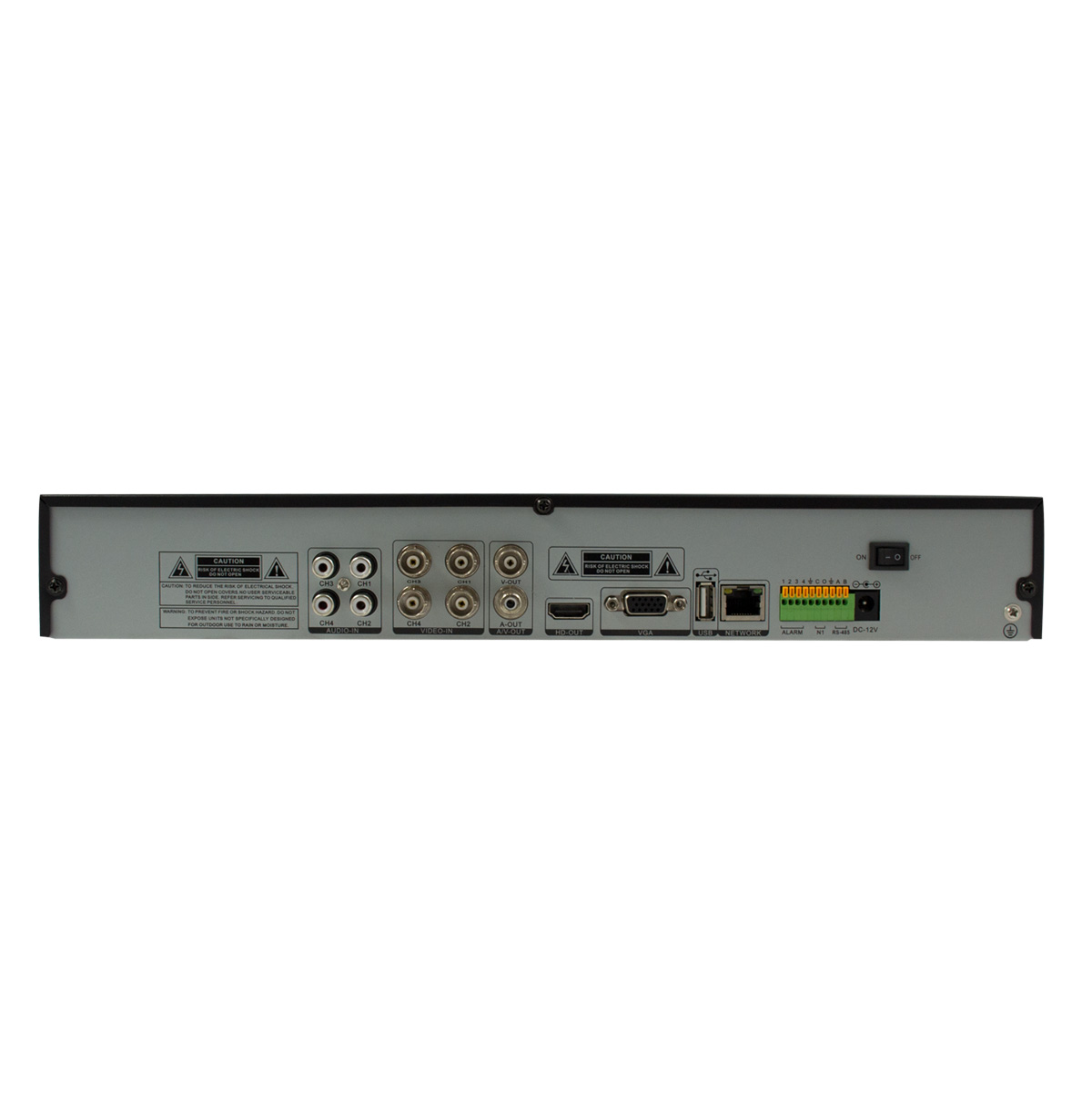

Interface
Video input/output	Input: 4-Ch BNC Output: 1-Ch BNC, 1-Ch VGA and 1-Ch HDMI
Audio input/output	Input: 4-Ch RCA Output: 1-Ch RCA
Alarm input/output	Input: 4-Ch Output: 1-Ch
PTZ Control	1-RS485
USB Port	2 * USB ports 2.0
HDD Port	2 SATA HDD port (up to 3TB each)
Network interface	1 RJ-45 10M/100M base-T Ethernet port
Mode control
Operating mode	Mouse, remote control, front panel control
Remote
Mobile surveillance	Support Windows Mobile, iOS, Android, Blackberry and Symbian
Security
Password protection	Yes
Environment
Operation temperature	-10ÂºC ~ 55ÂºC 14Â°F ~ 131Â°F
Working humidity	10% ~ 90%
Power
Power supply	DC 12V / 5A
Appearance
Color	Black
Size	11.82(L) * 2.37(H) * 14.97(W) inches
Weight	4.37 pounds

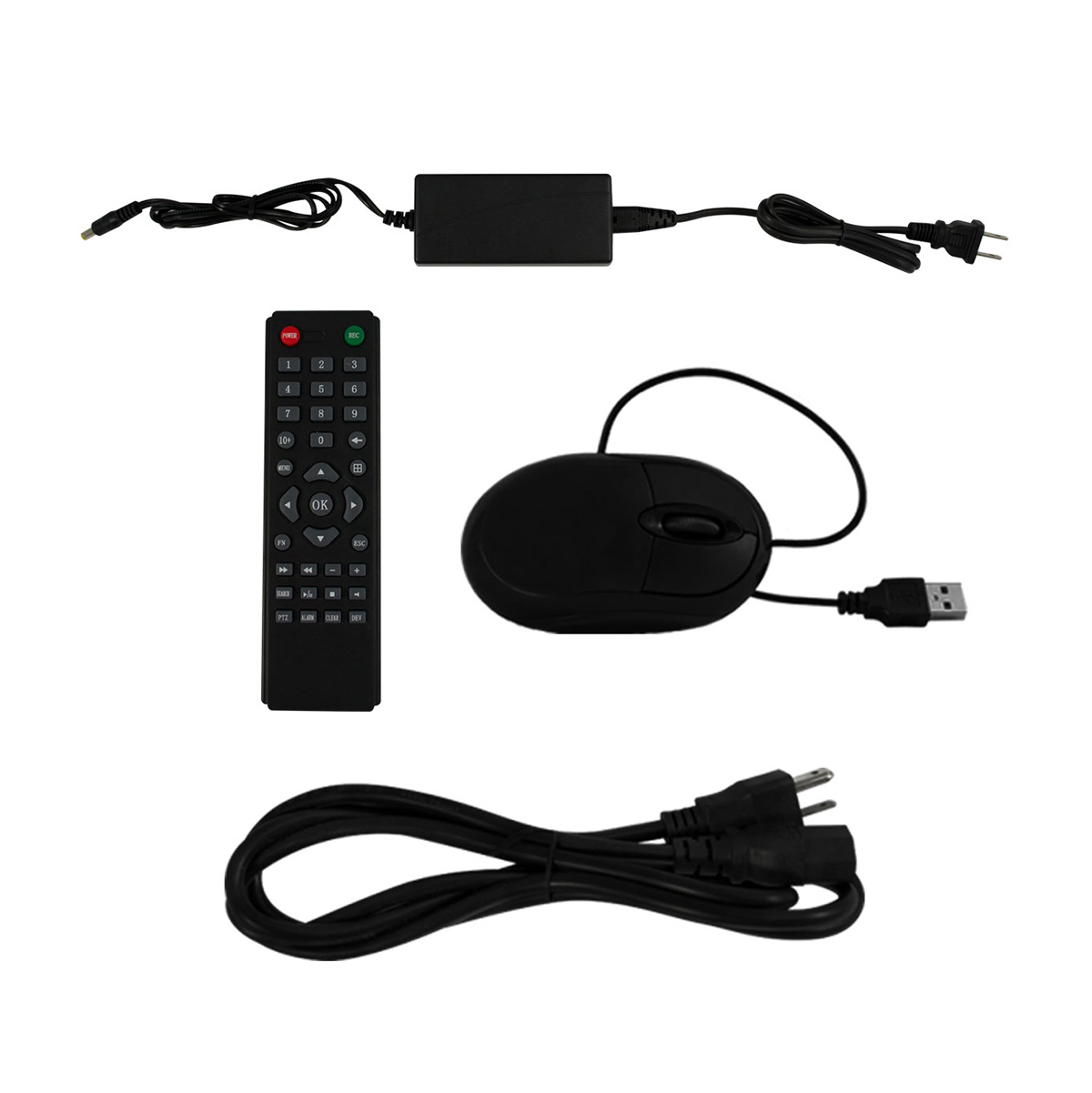

Accessories
Remote control	Yes
Mouse	Yes
