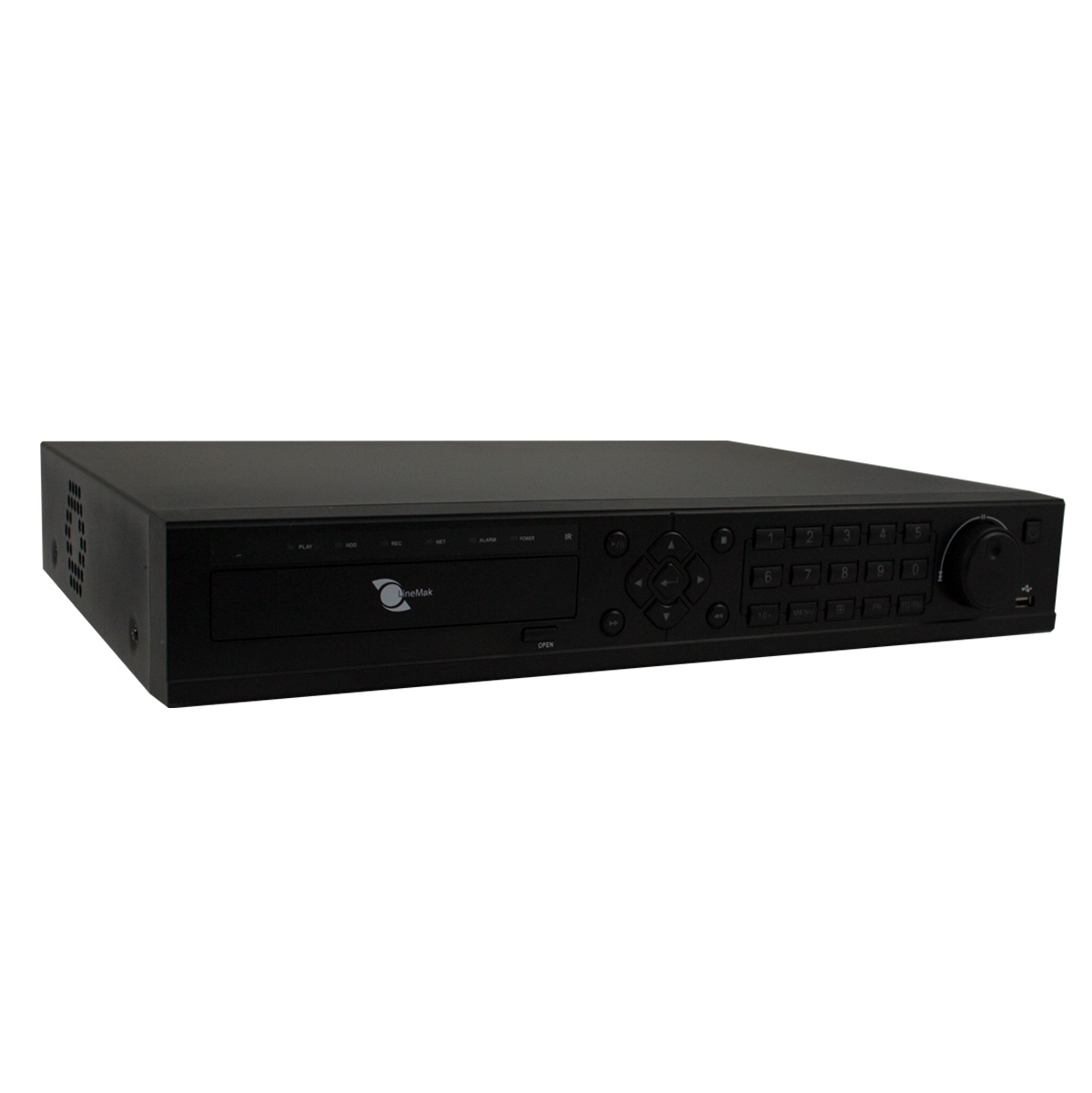

16Ch DVR, H264, BNC/VGA/HDMI outputs, Audio 16Ch in/1Ch out, D1
  • 16Ch DVR, H264, BNC/VGA/HDMI outputs, Audio 16Ch in/1Ch out, D1 - Image 1
  • 16Ch DVR, H264, BNC/VGA/HDMI outputs, Audio 16Ch in/1Ch out, D1 - Image 2
  • 16Ch DVR, H264, BNC/VGA/HDMI outputs, Audio 16Ch in/1Ch out, D1 - Image 3
  • 16Ch DVR, H264, BNC/VGA/HDMI outputs, Audio 16Ch in/1Ch out, D1 - Image 4
  • - D1 resolutions.
  • - P2P cloud services.
  • - Mobile surveillance: iOS, Windows, Blackberry, Symbian and Android.
  • - Hard drive not included.
  • - It support 3G dialing with Wi-Fi module extension.
  • - It supports multiple web browsers.
Products recommendaded to work with this item:
16ch dvr, h264, bnc/vga/hdmi outputs, audio 16ch in/1ch out, d1
+
vandalproof dome camera, sony ccd sensor 700tvl, 24 leds, 65ft ir, utc
+
vandalproof dome camera, sony ccd sensor 700tvl, 6mm lens, 1 led arra
+
seagate barracuda 1 tb hdd sata 6 gb/s ncq 64mb cache
Price for all 4: $335.96
  • This easy to use DVR (Digital Video Recorder) features an English menu and motion detection recording. Monitor your cameras on the internet from anywhere through your PC, mobile cellphone (Android, iPhone) or tablet (Android, iPad) in real time. Mouse and remote control included.

    This video surveillance equipment can record images registered by their cameras and is very easy to use.

    Multiple recording modes: Manual, timing, motion detection, video blind and video loss recording.
    Multiple control method: USB mouse, front panel, network control, and remote control.
    Compatible with WIN98 / WIN2000 / WIN XP / WIN VISTA / WIN SEVEN.

    Main features:
    - One step to link internet remote monitoring via P2P cloud services. No multifarious network settings needed.
    - 3G dialing support, Wi-Fi module extension and multifarious of mobile phone monitoring (iPhone, Windows Mobile, BlackBerry, Symbian and Android).
    - Multiple web browsers support (IE, Chrome, Firefox and Safari).
    - 2 USB port to support mouse, backup, burn and upgrade etc.
    - Over 20 different languages (English, Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, Chinese, traditional Chinese and Turkish, etc.).
    - Flexible display and free replacement boot interface.

    Hard drive not included.
    This Recorder does not include Hard Drive since it depends on the installer or the consumer on what requirement of Hard Drive capacity they are in need. We sell various types of Hard Drives. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.
    HDMI delivers enhanced image clarity
    HDMI delivers enhanced image clarity
    HDMI supports standard, enhanced or HD video. This recorder features an HDMI output which delivers enhanced image clarity with crisp images and enables you to view your security camera video in HD on your HDTV screen. HD images can be reproduced with the HDMI support for HD display.
    Keep everything under watch with multiple recording modes
    Multiple selectable recording options are available such as motion detection, continuous and scheduled recording. This enables you to choose the appropriate recording type for your security needs and to maximize the number of hours of video you can record and store on your hard drive.
    Keep everything under watch with multiple recording modes
    Remote setup to access the DVR screen setting
    Remote setup to access the DVR screen setting
    DVR settings adjustment such as remote firmware upgrade, email notification, recording resolution, and motion recording. All DVR settings in the Display, Record, Device, Storage, System, Security Network and Upgrade screens are accessible remotely, for easy adjustment of related DVR functions.
    Motion detection
    Pre-define zones within the area covered by each camera so that the DVR only starts recording when motion is detected within the zone. This saves hard drive space and reduces the amount of video recorded, making it easier to find the video you need if there is an event.
    Motion detection
    Backup for saving critical video evidence
    Backup for saving critical video evidence
    The recorder allows still images and recorded video to be offloaded via one or more of these options for quick and easy backup of your critical video evidence: DVD, USB drive or network.
    Monitoring 3G
    Monitors 3G work like a standard baby monitor system with an iOS device serving as a monitor in the baby's room or anywhere else the baby may be and a second device as the parent's listening station. Since having a baby requires constant monitoring, with a baby monitor 3g you will be able to watch over and provide them with safety and happiness
    Monitoring 3G
    Full HD sets
    Full HD sets
    Be able to handle High Definition signal of 1080 lines of information across the screen with Full HD. Since Full HD is only a marketing term, it does not indicate any particular qualities besides 1080p. 1080p televisions have a resolution of 1920×1080 and are progressive scan, which means all lines of each frame of video are drawn on the set.
    Save money with no contracts and no monthly fees
    Once your system is installed, you have the peace of mind that your property is protected with the added advantage of no binding contracts and no recurring monthly subscription fees.
    Save money with no contracts and no monthly fees
    Warranty: One (1) Year
  • 16Ch DVR, H264, BNC/VGA/HDMI outputs, Audio 16Ch in/1Ch out, D1
    General
    Brand LineMak
    Model LS-NTR6116H1-2
    System
    Operating system Embedded Linux
    System resources Multi-channel real time recording and playback, multiple network operation and USB backup
    Display
    Display area 1/4/8/9/16 (according to the input mode you choose)
    Graphic user interface (GUI) Voice user interface (VUI)
    Video
    Resolution D1
    Video format NTSC
    Compression format H.264
    Encode capacity 16ch real time
    Decode capacity 4ch real time
    Streams Can be set up in each channel
    Recording & Playback
    Recording mode Manual, timing, motion detection, video blind and video loss recording
    Local playback 1-4ch playback simultaneously
    Search mode Time, date, motion and channel detection
    Interface
    Video input/output Input: 16-Ch BNC (1.0Vp-p,75ohm)
    Output: 1-Ch BNC (1.0Vp-p,75ohm), 1-Ch VGA and 1-Ch HDMI (1080P)
    Audio input/output Input: 16-Ch RCA
    Output: 1-Ch RCA
    Alarm input/output Input:4-Ch
    Output: 1-Ch
    PTZ Control 1 RS485 port
    USB Port 3 USB 2.0 ports
    HDD Port 4 SATA HDD port (up to 3TB each)
    Network interface 1 RJ-45 10M/100M base-T Ethernet port
    Mode control
    Operating mode USB mouse, front panel, network control and remote control
    Environment
    Operation temperature -10ºC ~ 55ºC
    14ºF ~ 131°F
    Working humidity 10% ~ 90%
    Power
    Power supply DC 12V/6A
    Appearance
    Color Black
    Size 11.81(L) * 7.09(H) * 15.36(W) inches
    Weight 7.85 pounds
    Accessories
    Remote control Yes
    Mouse Yes
  • Manual
    File Size: 4550.85 Kb
    Languages: English
    File Type: PDF
    Instructions
    File Size: 2204.32 Kb
    Languages: English
    File Type: PDF
