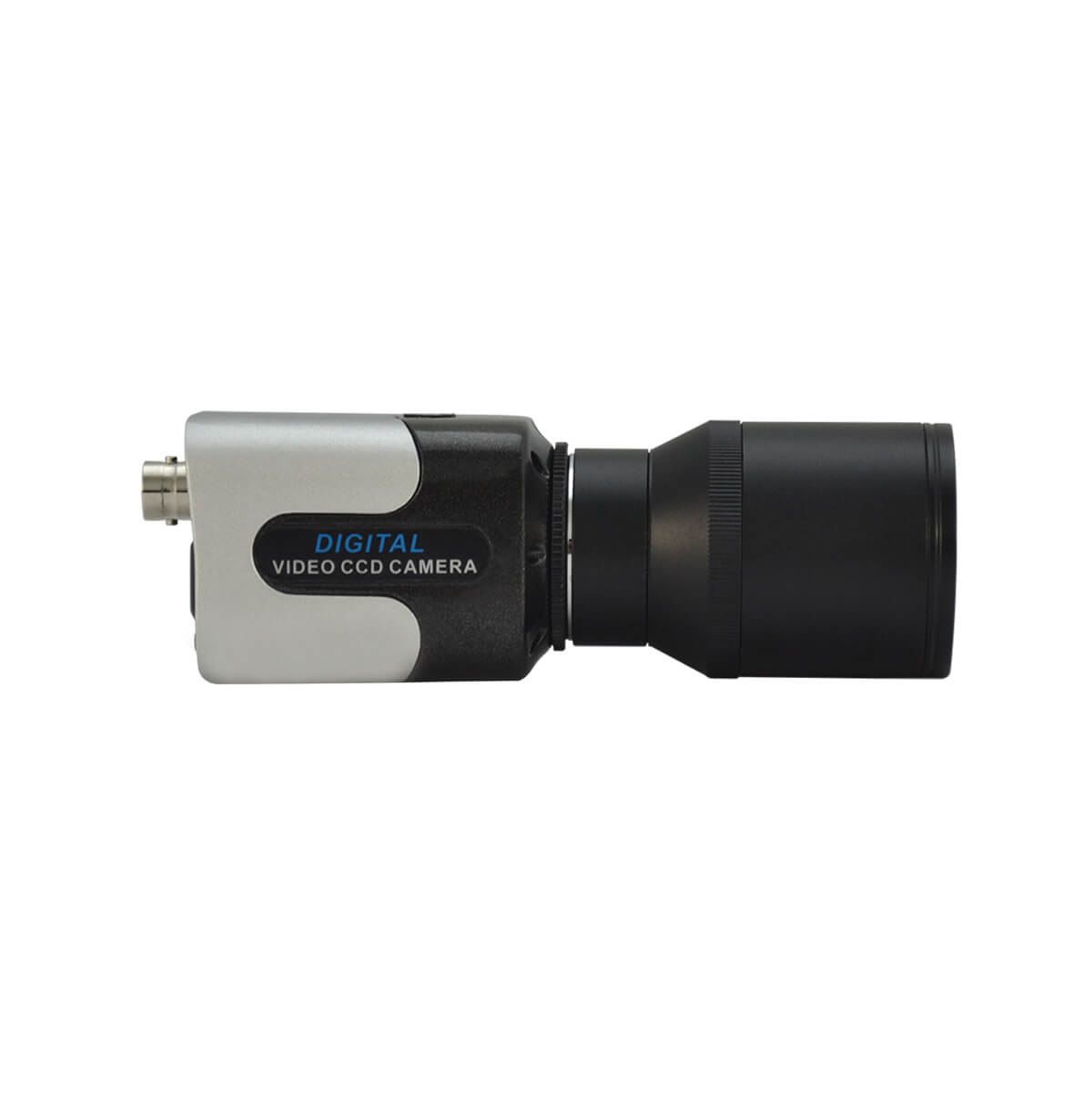

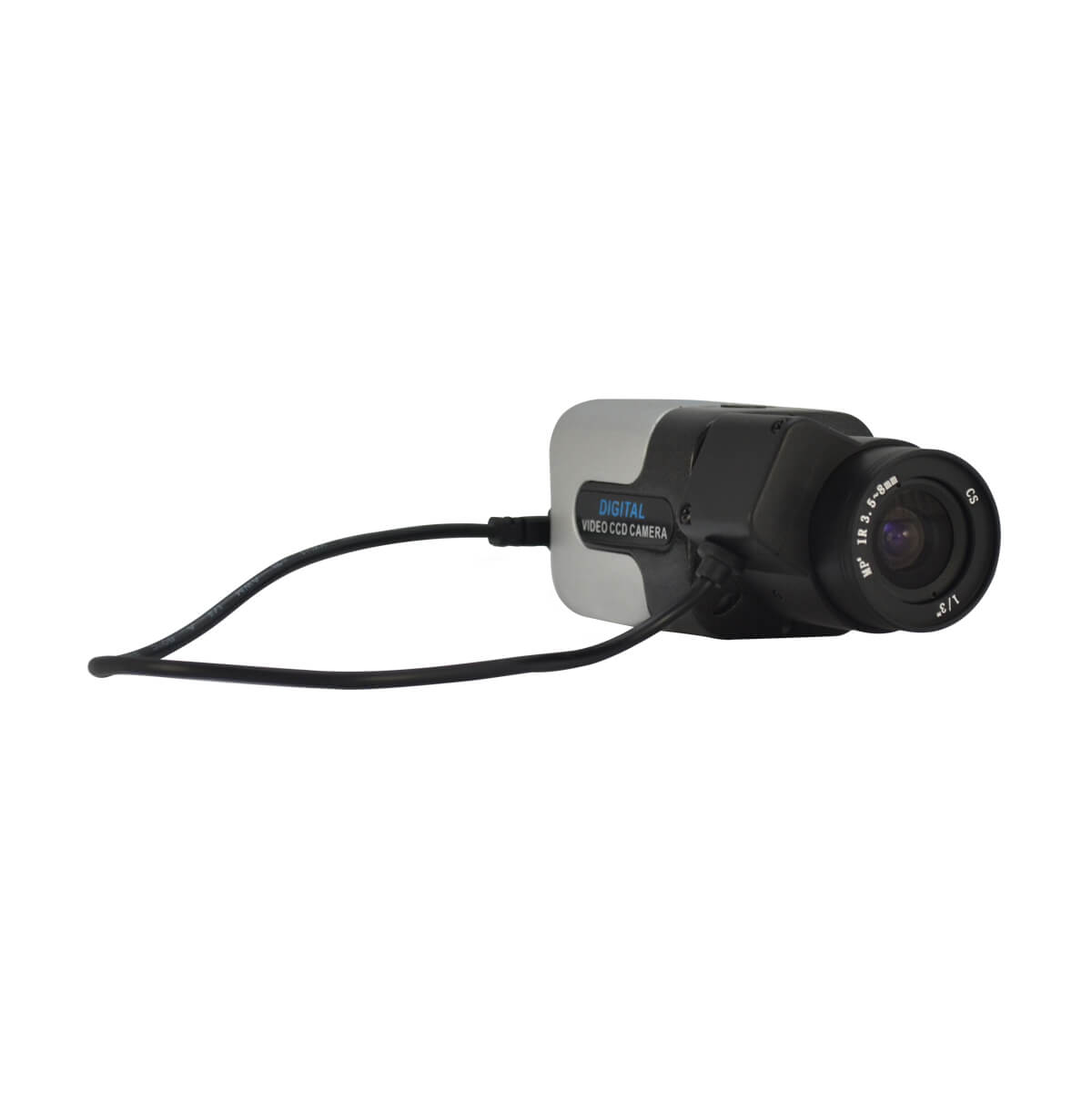

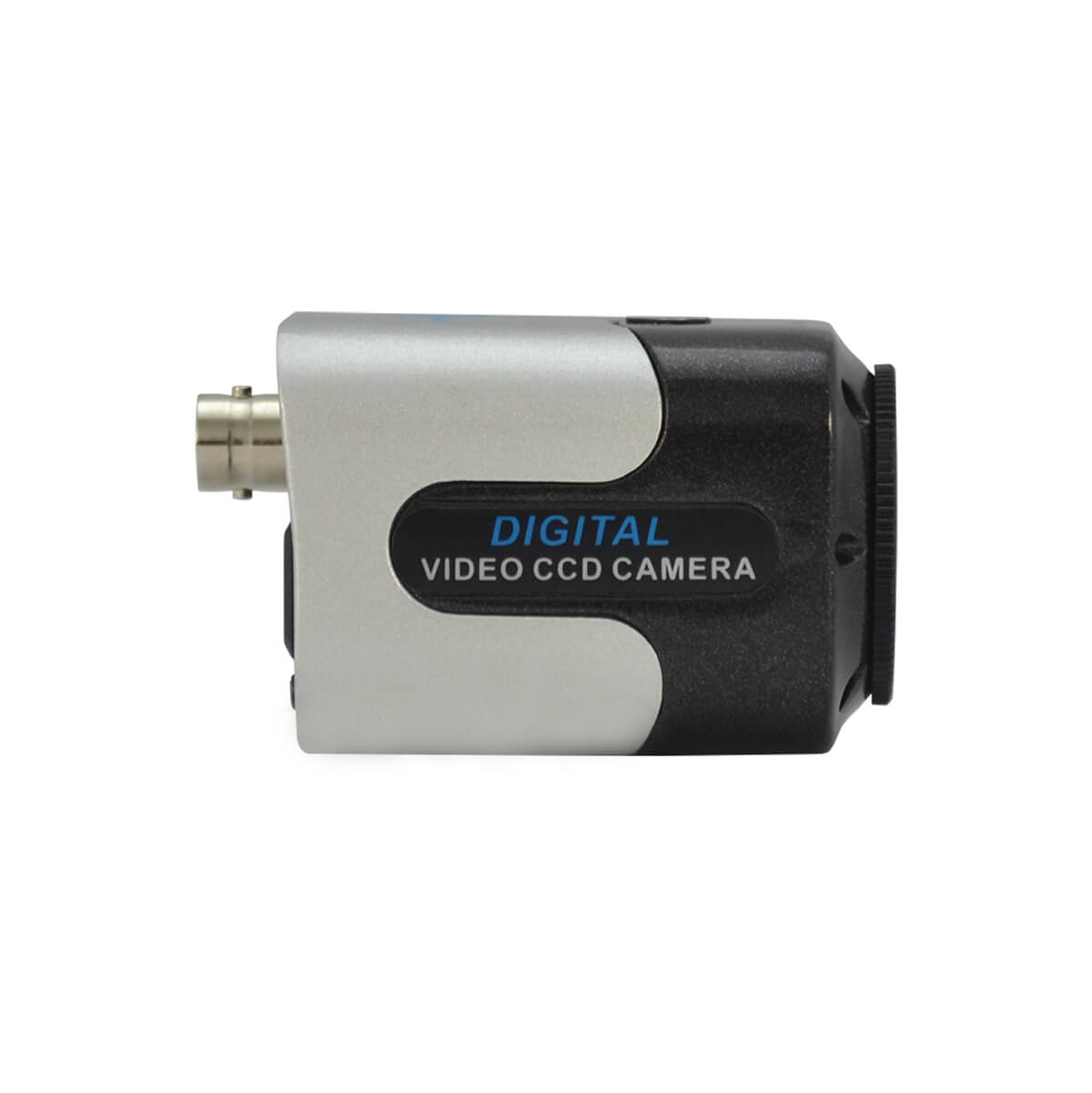

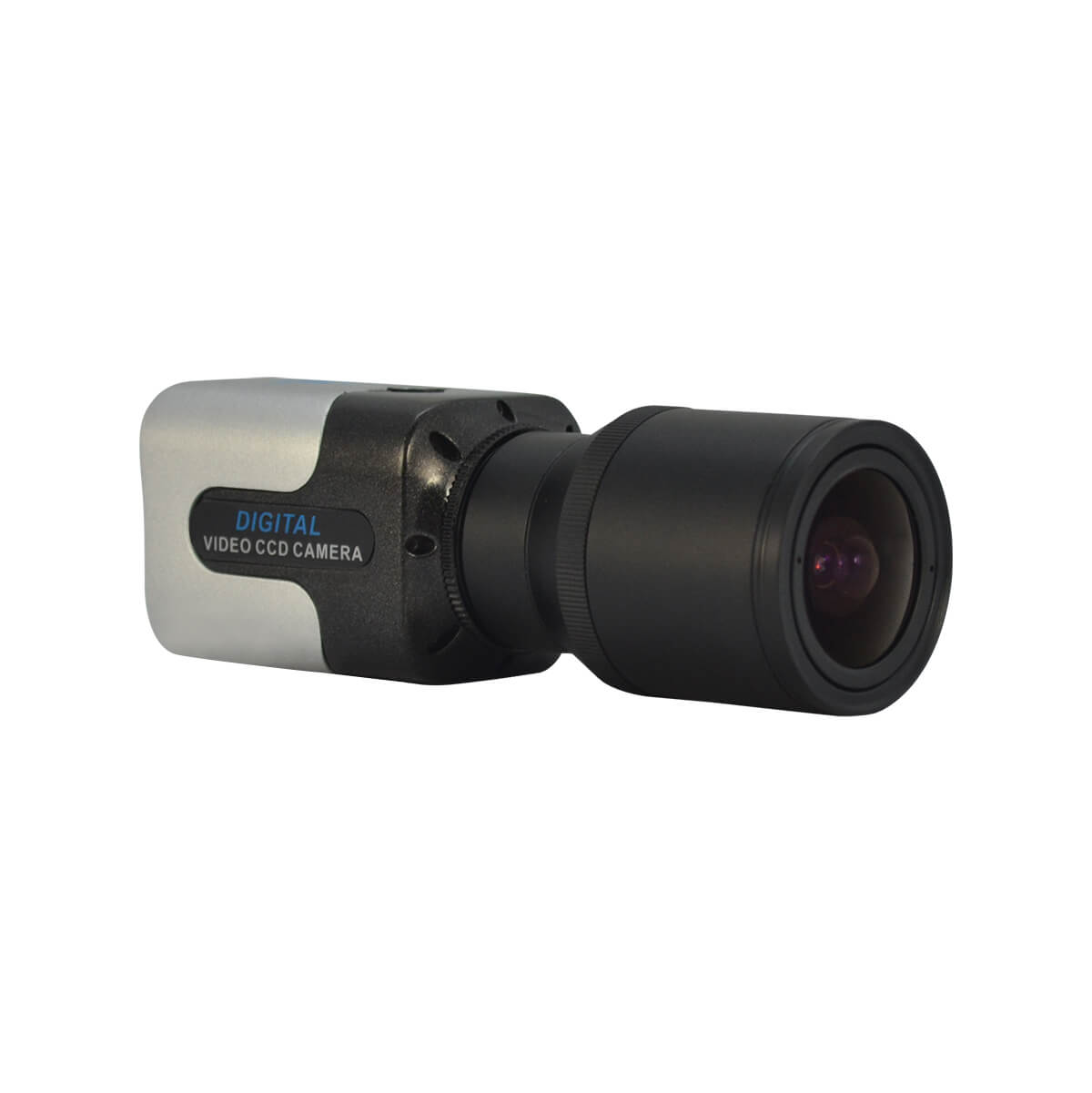

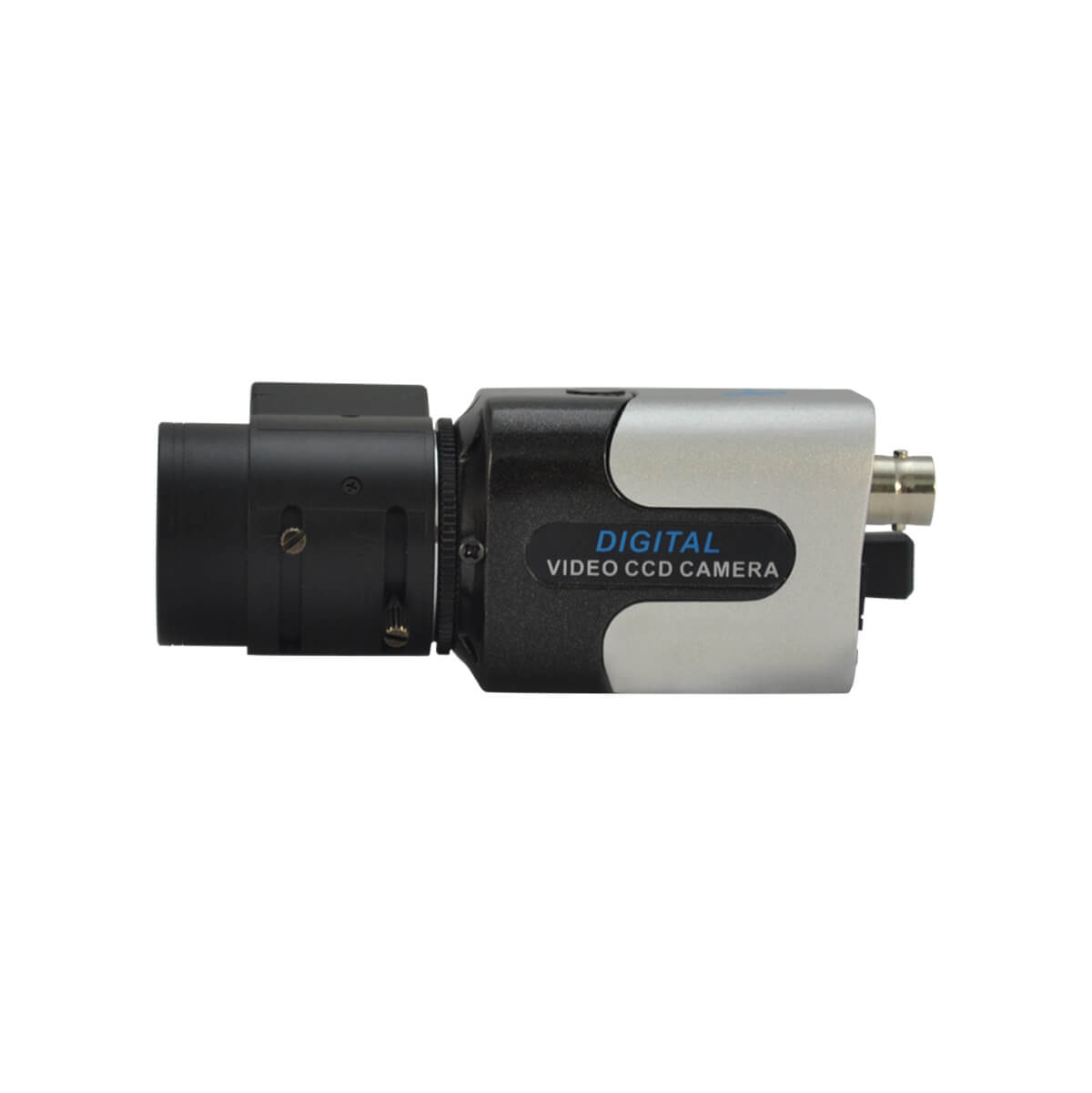

Mini Box Camera, SONY CCD Sensor, 700TVL, OSD Menu, BLC, AGC, AWB, Indoor Cameras

COMING SOON

- OSD menu, electronic adjustable shutter.
- Anti-flicker, privacy zone and mirror function.
- BLC, AWB and AGC function.
- Power adapter and lens not included.
- 1/3" SONY Color CCD Sensor, 700TVL.

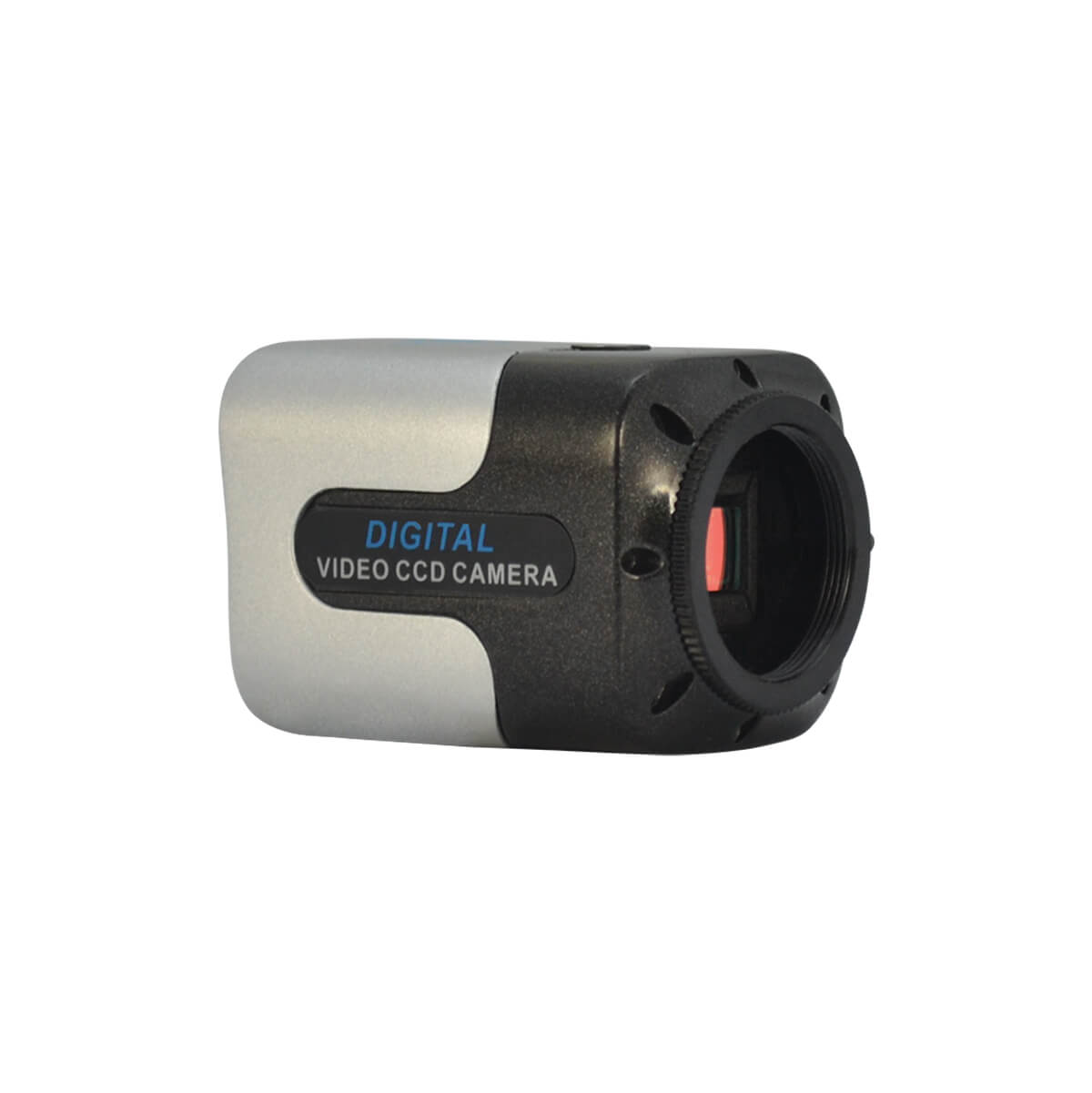

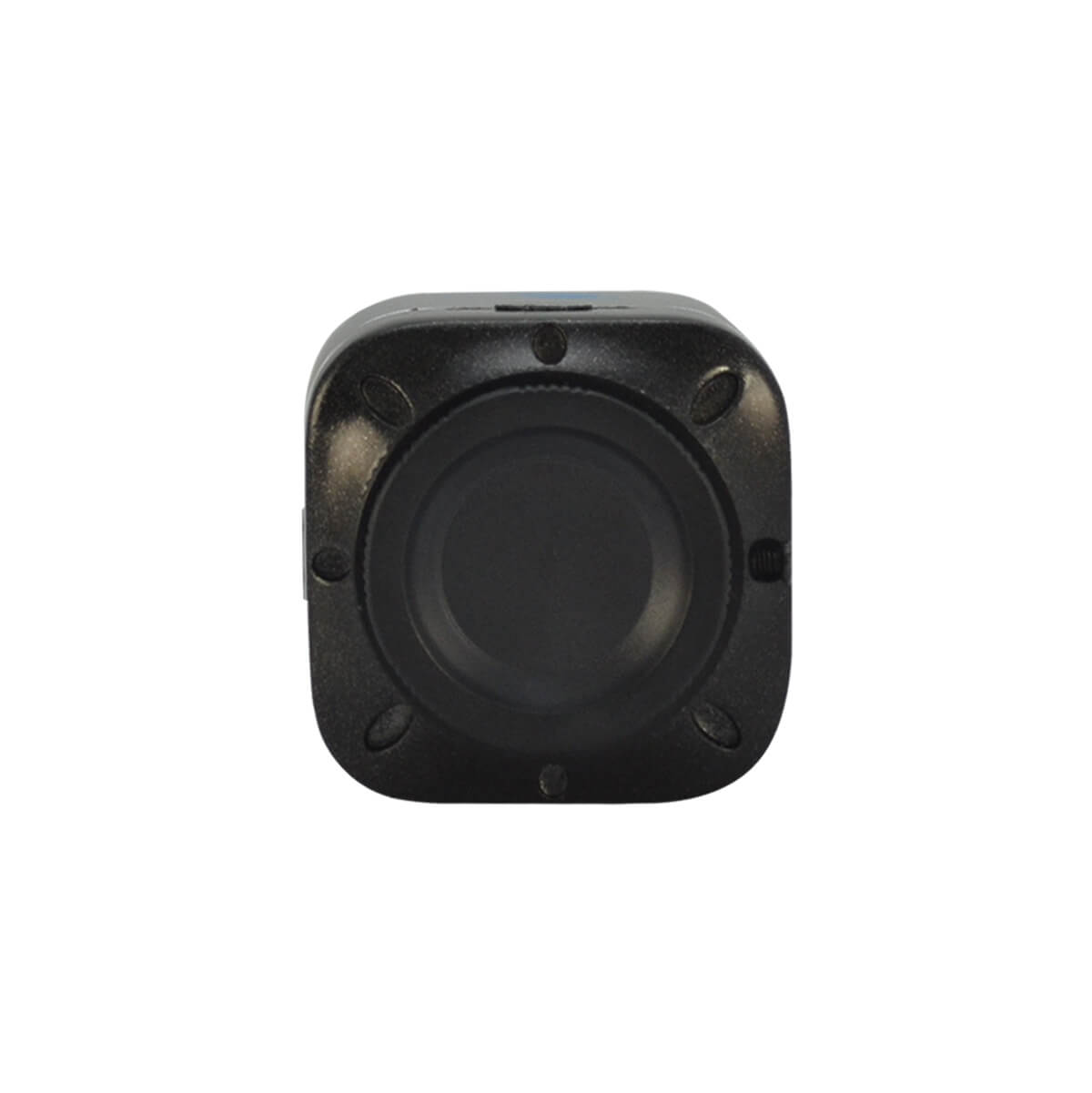

- C/CS Lens mount.

Products recommendaded to work with this item:

lens for box type camera thread type c/cs for lsve6047wnosd

dc12v 2a power adapter specially for security cameras

Price for all 3: $67.97

Mini Box Camera, SONY CCD Sensor, 700TVL, OSD Menu, BLC, AGC, AWB

Lens for box type camera thread type C/CS for LS-VE6047WN-OSD

DC12V 2A Power adapter specially for security cameras

Product Features Specifications Download

Mini box camera for general use, auto-iris, compact, solid. OSD Menu. It has 0.1 Lux light, allowing clear vision lighting anywhere.

Top of the line equipment regarding sensor and driver.

This equipment is designed for indoors usage and can be easily installed anywhere going unnoticed thanks to its size.

Its resolution, sensitivity and wide opening angle are perfect for monitoring stores, offices, shops, warehouses and anywhere with little or no light.

For best results, regarding image quality, use our servers and digital video recorders (DVR). See this camera online through any of our recording systems.

Power adapter not included.
This camera does not include power supply since it depends on the installer or the consumer on how they will supply power. We sell individual power supply with different amps and centralized power supply. It all depends on the requirements needed for the installation. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

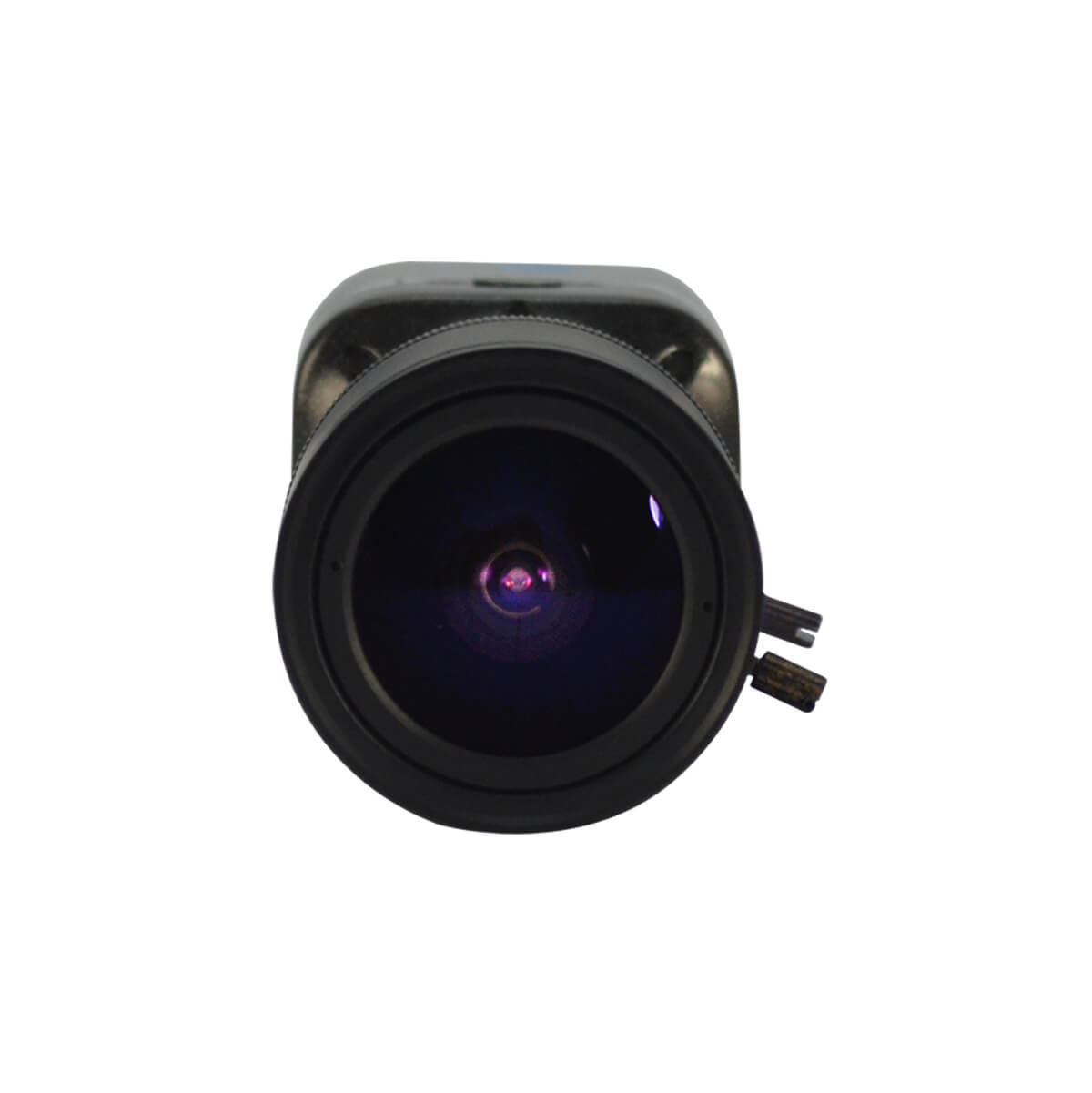

Lens not included.
This camera does not include Lens since it depends on the requirement of the installer or consumer. We sell various types of Lens depending on the viewing angles you need. Please ask us for our recommendations or questions if you are not sure or need support before purchasing.

Main features:
- OSD menu, electronic adjustable shutter.
- Anti-flicker, privacy zone, motion detection, mirror function.
- AWB support function: high color reproduction and real image.
- BLC support function: suitable for objects monitoring under backlight environment.
- AGC support function: adaptive brightness.

OSD Menu

Most monitors include an on screen menu for making adjustments to the display through which you can navigate through the menu and make adjustments by using the Plus (+) and Minus (-) buttons, usually located next to the menu button. OSD include basic brightness and contrast controls. This superimposed image on the screen is commonly used by modern TV sets for volume, channel and time control.

Automatic Gain Control (AGC)

Automatic gain control boosts the video signal coming from the imager to amplify and improve scene illumination.

A rear-view mirror cameras

The rear-view mirror camera imitates the function of the actual mirror including the recording function as well, reason why it is highly recommended to use the rear-view camera as a back-up means to check for obstructions behind the car and avoid using it on frozen slippery roads.

Auto White Balance (AWB)

Function seeking to compensate the backlight events in order to prevent the camera from dazzling with great intensity of light received and so produce an unsatisfactory image. AWB may be entirely sufficient for camera positions with non-traditional environmental illumination changes.

Back Light Compensation (BLC)

In the security cameras, the BLC is a function that seeks to compensate the backlight situations to prevent the camera dazzles with great intensity of light received and produce an unsatisfactory image.

Warranty: One (1) Year

Mini Box Camera, SONY CCD Sensor, 700TVL, OSD Menu, BLC, AGC, AWB
General
Brand	LineMak
Model	LS-VE6047WN-OSD
Sensor
Resolution	700TVL

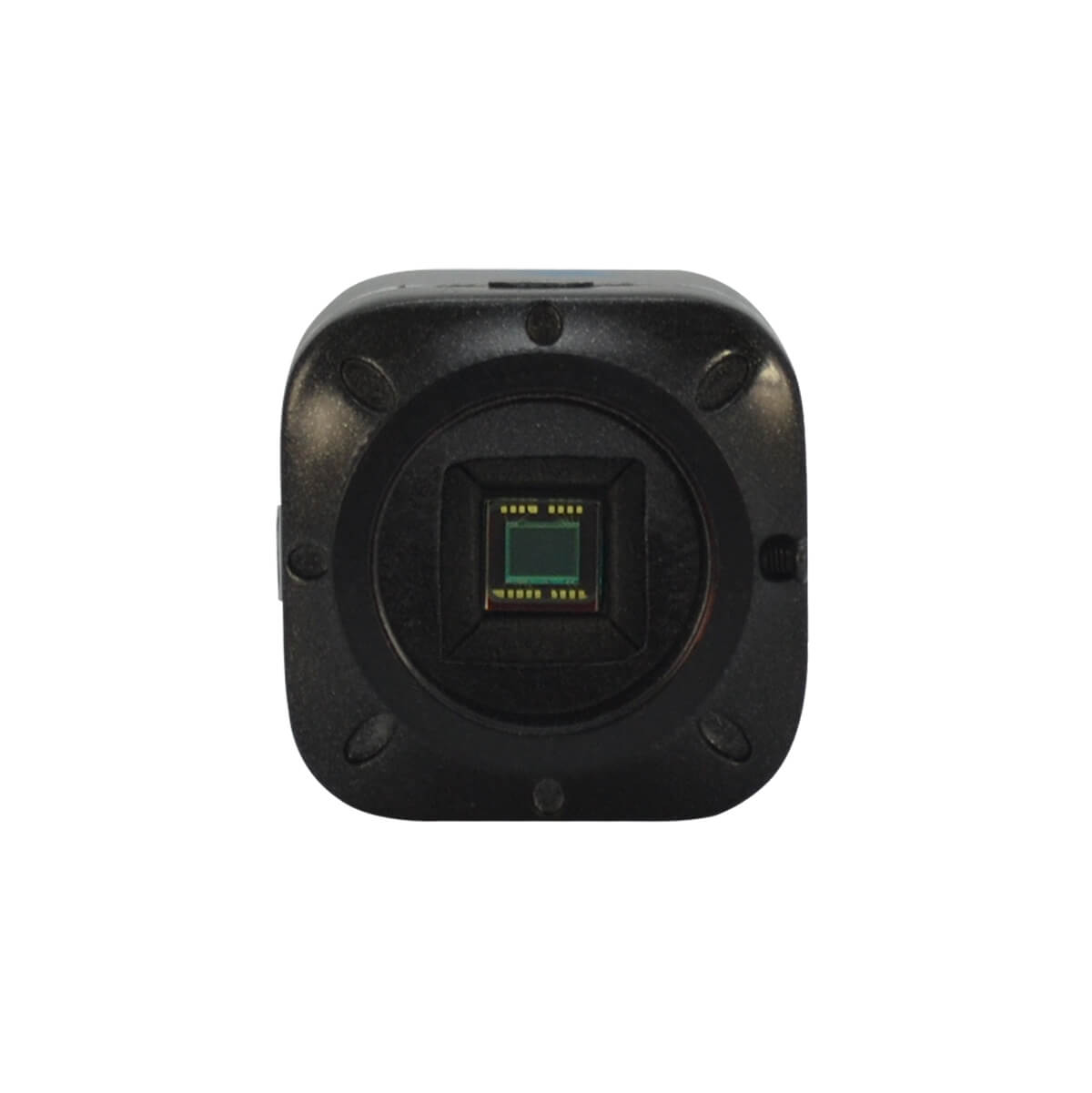

Sensor	1/3" SONY Color CCD
Video
Video format	NTSC / PAL

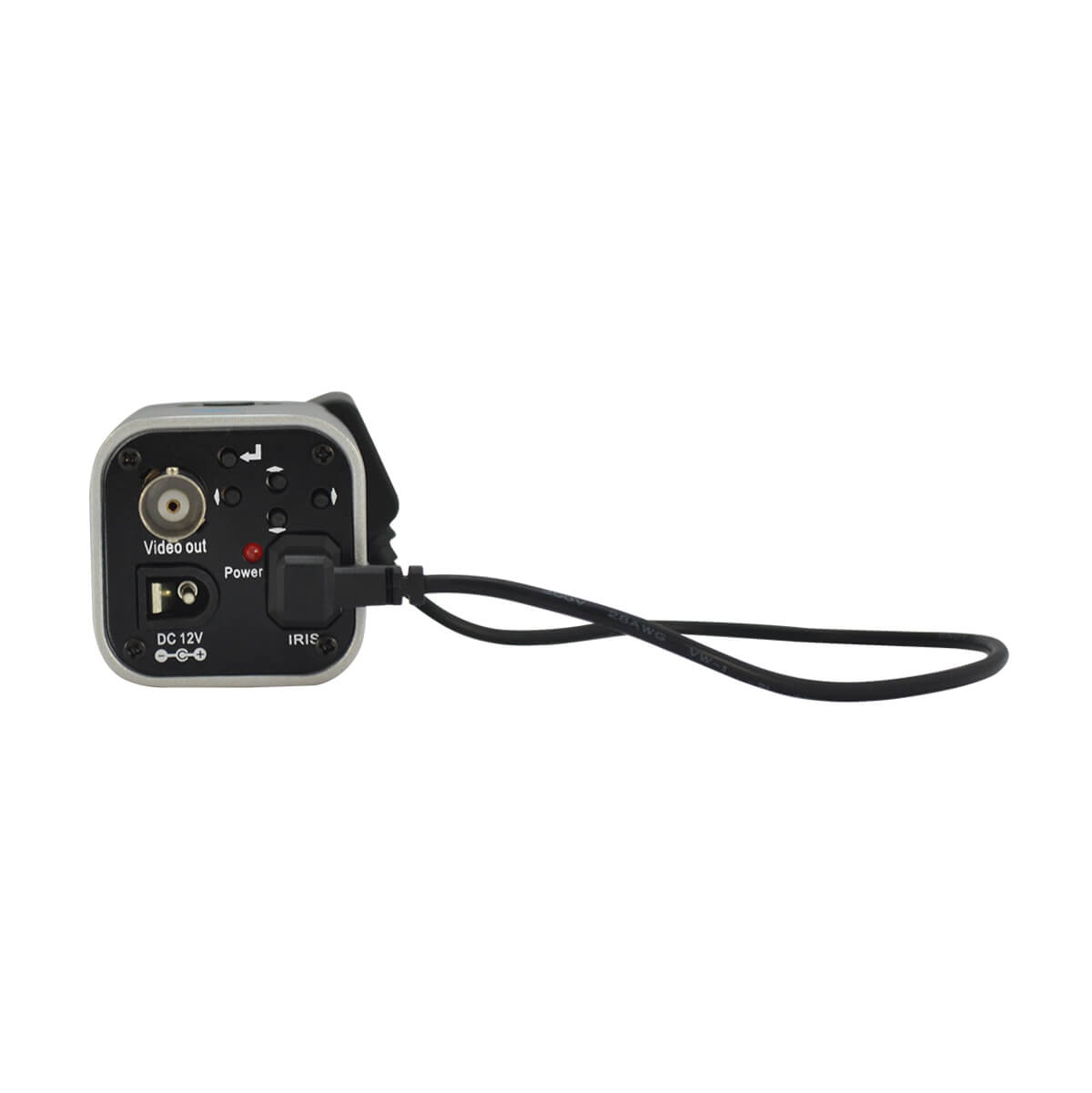

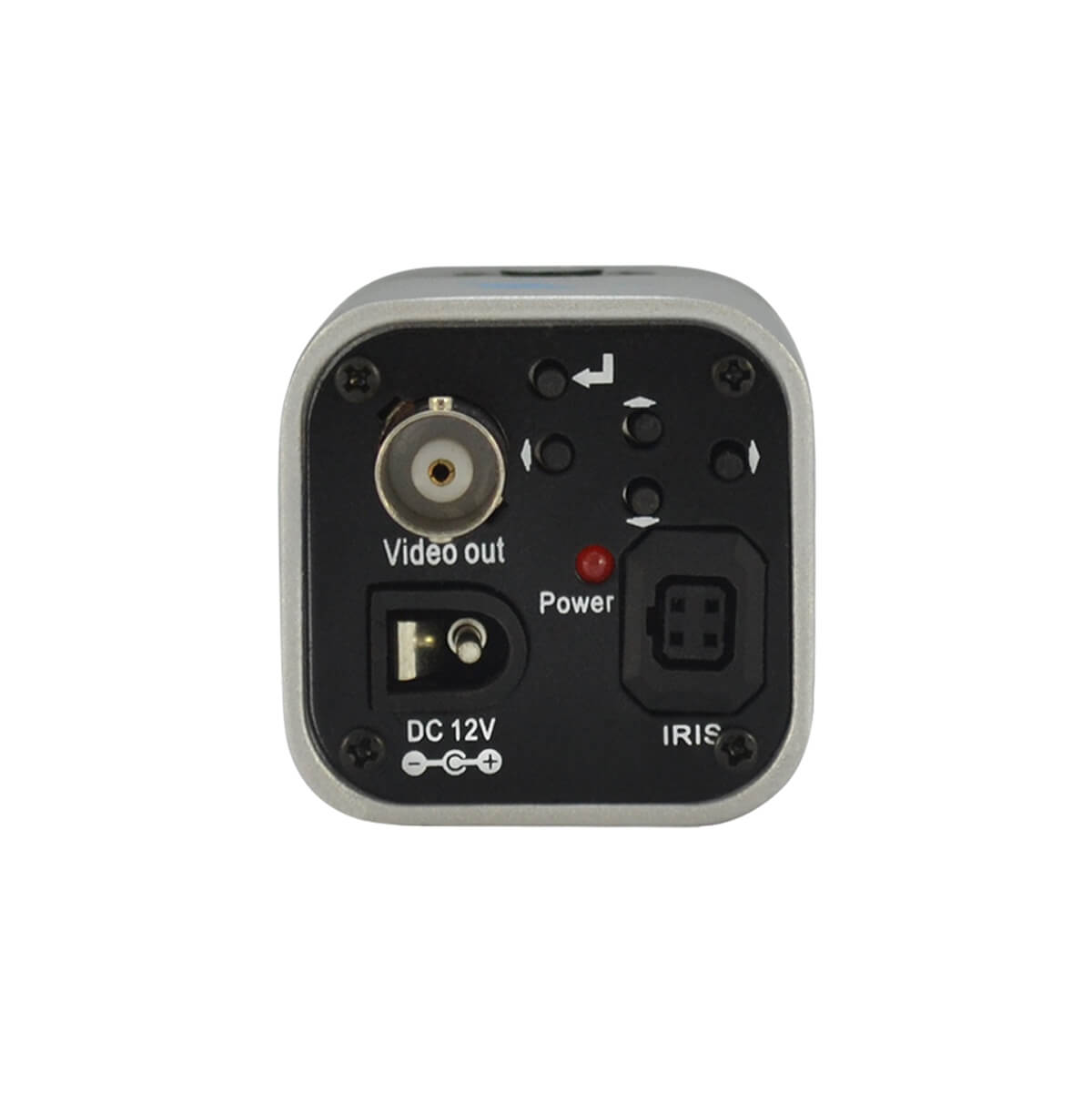

Video output	1.0Vp-p, 75ohm (Composite Video)
Lens

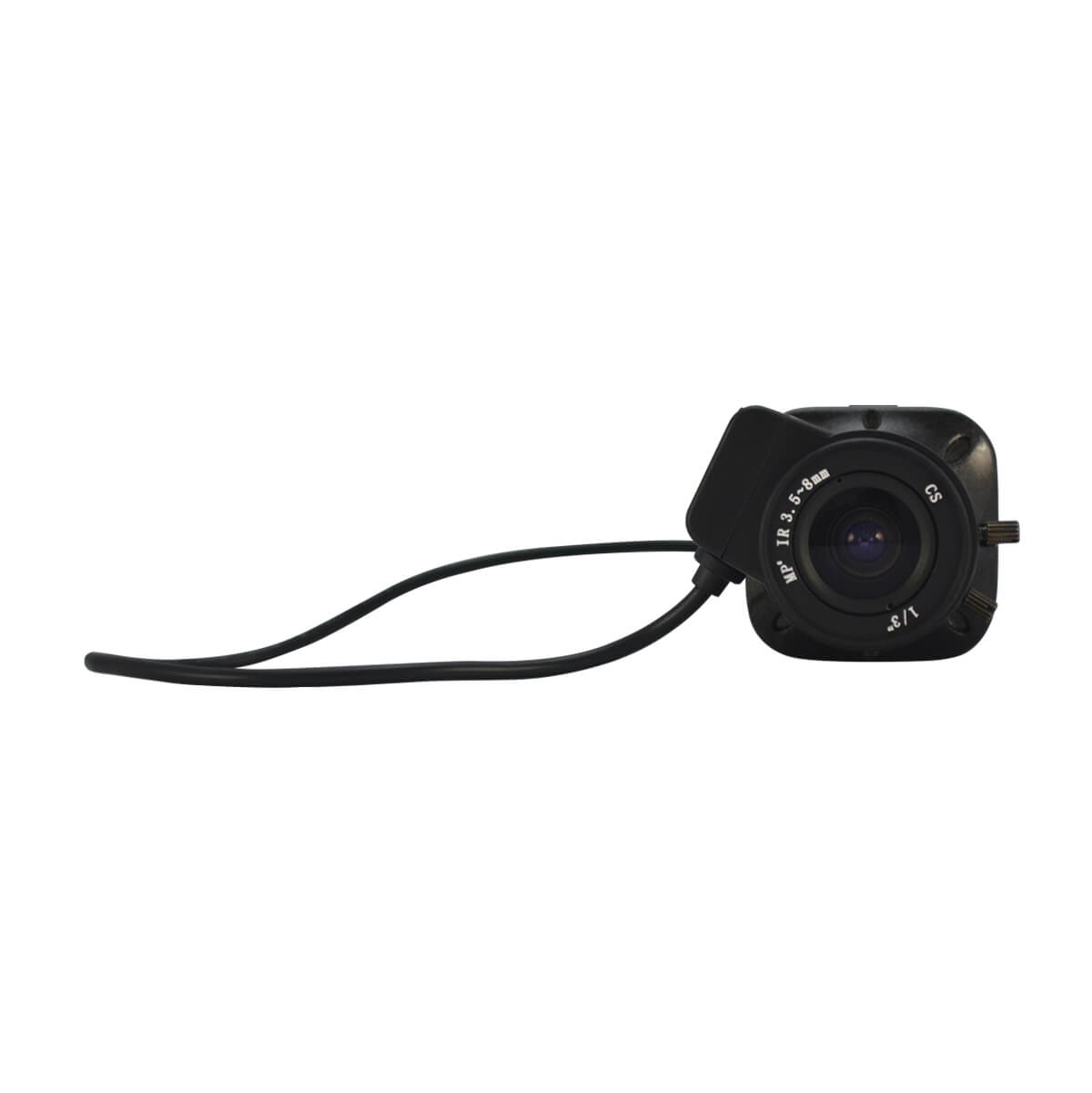

Auto Iris	DC / Video Drive
Minimum illumination	0.1 Lux
Security
Motion detection zone	On / Off (64 Zones)
Privacy zone	On / Off (4 Zone)
Environment
Operation temperature	-10Â°C ~ 50Â°C 14Â°F ~ 122Â°F
Working humidity	85% RH
Power
Power supply	DC 12V
Power consumption	200mA
Appearance
Color	Gray
Size	2.95(L) * 1.97(H) * 1.97(W) inches
Weight	5.29 ounces
Special function
Back Light Compensation (BLC)	Yes
Auto White Balance (AWB)	Yes
Electronic shutter speed (AES)	No
Auto Gain Control (AGC)	Yes
Digital Noise Reduction (DNR)	No
Wide Dynamic Range (WDR)	No
Mirror	Yes
Adaptive Tone Reproduction (ATR)	No
High Light Compensation (HLC)	No
Standard
Synchronizing system	Internal
S/N Ratio	>50dB
Gamma correction	Auto / Manual
OSD Menu	Yes
Anti-flicker mode	Yes
